This section renders the test results of a selected list of design input items, e.g. like this
Choosing the Content
Test results are shown for the selected test run. It is possible (optionally) to select items for which the test coverage should be documented:

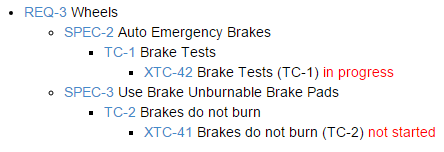

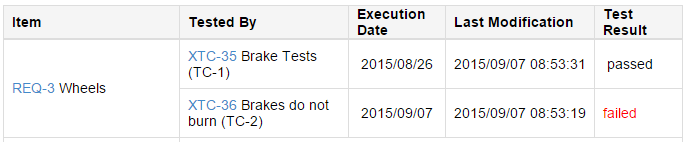

- If items are items are selected, the results can be printed as table (items with related test results) or tree (from items with complete traces to test results).

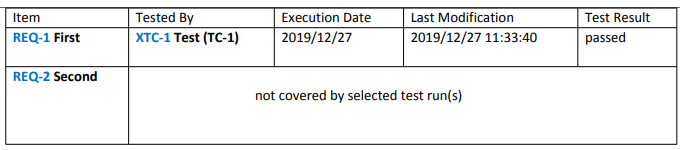

- If no items are chosen only table with test results will be produced.

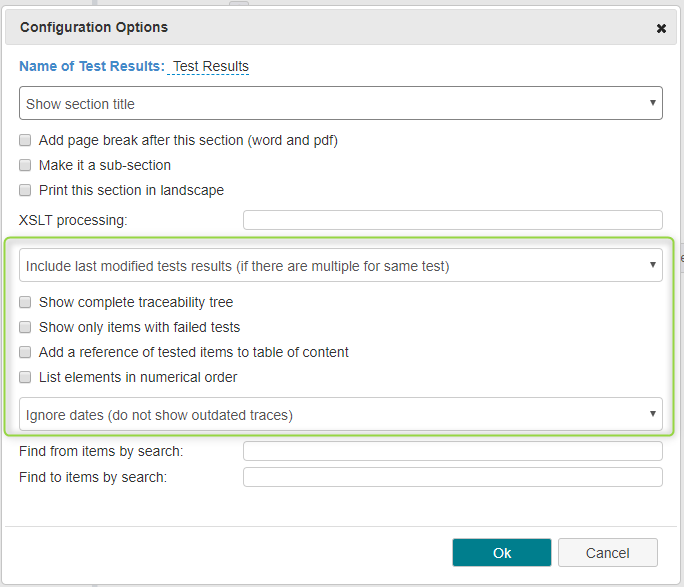

Specific Options for Test Result Sections
|Options (default in bold)||Explanation|
|Include last modified tests|
In case there are several test results for the same test case, only the last one is shown.
last means the last modified / changed XTC
|→ include all test results||unconditionally include all selected test results|
|→ include last created test results||Selects the XTCs with the higher IDs if there are multiple included XTCs which are derived from the same TC.|
|Show complete traceability tree|
If test results for items, e .g. REQ are shown, this will show the tree from the items to the XTC
|Show only items with failed tests||Include items only information with tests which failed|
|Add a reference of tested items to table of content||Include the references of tested items to the table of content if such a section is included in the document. See Table of Contents for required options.|
|List elements in numerical order||Sort the items by the item ids.|
|Ignore dates||Does not show warnings about outdated traces|
|→ Indicate outdated traces||Show warning about outdated traces|
|→ Treat outdated traces as errors||Show outdated traces as error|
