An OR Label Group allows you to define labels which are grouped together in the UI, The labels work completely independent from each other (meaning they can be toggled on/off individually).

For example REQ and UNIT are two labels which can be defined to flag a test as unit and/or regression test.

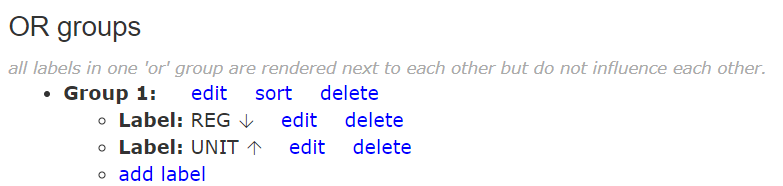

These labels are defined in the administration client, by creating a group with these two labels.

Labels can easily be ordered by clicking on the up or down arrow besides label name.

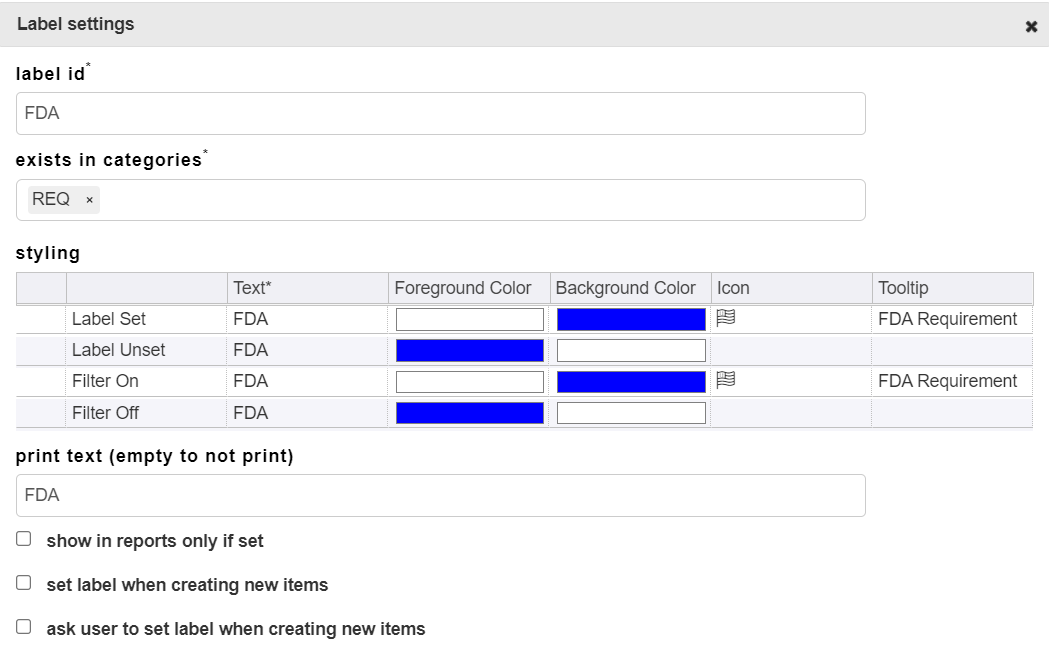

Each Or Label is specified using this dialog

  • The label id is the internal identifier, which is stored in the database and which can be used in searches.
  • The exists in categories field allows you to define the categories for which the user can set the label
  • The styling table defines how the label is displayed in the UI:
    • There are 4 different appearances (one for each line)
      • the look of the label if it is set
      • the look of the label if it is not set
      • the style of the filter when selected
      • the style of the filter when not selected
    • Each line has several attributes
  • the print text field defines what should be shown in documents when printing an item which has the label set
  • When printing labels, they are either shown with a check mark to indicate they are set or a cross to indicate they are not set. The option set show in reports only if set allows to not show labels which are not set.
  • set labels when creating new items allows to automatically set items when creating new labels
  • if ask user to set labels when creating new items is checked the create dialog will allow the user to set the labels
